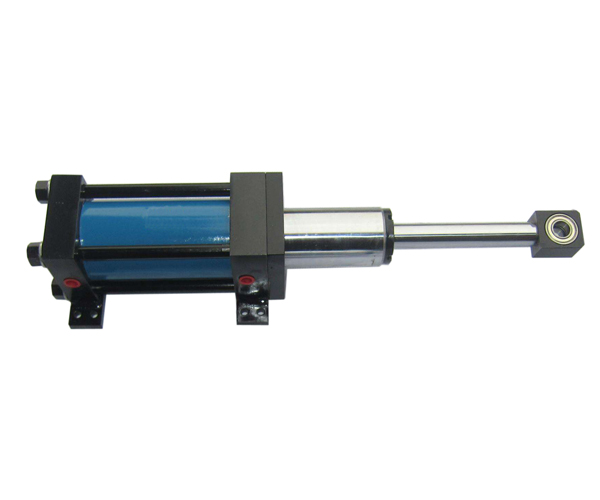

3.5Mpa hydraulic cylinder標準拉桿液壓缸
塞姆克油缸、系統分廠主要從事各種液壓油缸，液壓系統的設計，制造及技術咨詢與服務等項目，并致力于各種非標液壓油缸及高性能油缸的研發。
目前公司聘請了多名有三十幾年工作經驗的知名專家為本公司的工程師及技術顧問。我們生產的液壓油缸有四拉桿型，DG型車輛用液壓缸，HSG系列液壓缸，Y系列冶金用液壓缸，大通徑重型液壓缸，以及各種非標液壓缸。
Seric’s cylinder and system branch plant is mainly engaged in a variety of hydraulic cylinders, hydraulic system design, manufacturing and technical consultation and service projects, and committed to a variety of non-standard hydraulic cylinders and high-performance cylinder research and development. At present, the company has hired a number of well-known experts with more than 30 years of working experience for the company's engineers and technical consultants. Now we produce a variety of standard hydraulic cylinder, vehicle hydraulic cylinder, metallurgical hydraulic cylinder, large diameter heavy hydraulic cylinder, as well as a variety of non-standard hydraulic cylinders.
3.5Mpa CTJ型標準液壓缸，為了對應以機床為首的一般工業機械廣泛用途，備有多種支承型式。塞姆克油缸、系統分廠主要從事各種液壓油缸，液壓系統的設計，制造及技術咨詢與服務等項目，并致力于各種非標液壓油缸及高性能油缸的研發。
目前公司聘請了多名有三十幾年工作經驗的知名專家為本公司的工程師及技術顧問。我們生產的液壓油缸有四拉桿型，DG型車輛用液壓缸，HSG系列液壓缸，Y系列冶金用液壓缸，大通徑重型液壓缸，以及各種非標液壓缸。
Seric’s cylinder and system branch plant is mainly engaged in a variety of hydraulic cylinders, hydraulic system design, manufacturing and technical consultation and service projects, and committed to a variety of non-standard hydraulic cylinders and high-performance cylinder research and development. At present, the company has hired a number of well-known experts with more than 30 years of working experience for the company's engineers and technical consultants. Now we produce a variety of standard hydraulic cylinder, vehicle hydraulic cylinder, metallurgical hydraulic cylinder, large diameter heavy hydraulic cylinder, as well as a variety of non-standard hydraulic cylinders.
另有液壓缸本體上裝有滑動式接近開關，容易檢測位置的帶有接近開關的CJT型標準液壓缸已系列化。（詳情請與我們聯系）
參數specification
| 項目 | CJT35-※※※※※-※※※-20 | ||
| 缸內徑 mm |
32、40、50、63、80 100、125、160 |
||
| 支承型式 | SD、LA、LB、FA、FB、CA、CB、TA、TC | ||
| 工作壓力 | 3.5Mpa | ||
| 最高允許壓力 | 4.5MPa | ||
| 耐壓 | 5.0Mpa | ||
| 最低工作壓力 | 0.1MPa | ||
| 最高工作速度 | 300mm/s | ||
| 最低工作速度 | 8mm/s | ||
|
★1 最大行程 mm |
缸內徑 | 32 | 800 |
| 40 | 1000 | ||
| 50、63 | 1200 | ||
| 80 | 1600 | ||
| 100 | 1600 | ||
| 125、160 | 1800 | ||
| 行程允差 | 參照列表★2 | ||
| 活塞桿頭部螺紋精度 | JIS B 0211-6g（2級） | ||
| 環境溫度范圍 | -10~+80℃ | ||
● 大致質量由下式計算
【質量】=【基本質量】+【行程100mm增加質量x行程/100】。
★1、因受縱向彎曲強度上的限制，最大行程上有變化。
★2.行程的允差
|
行程 mm |
允差 mm |
| 小于100 | +0.8 0 |
| 超過100小于250 | +1.0 0 |
| 超過250小于630 | +1.25 0 |
| 超過630小于1000 | +1.4 0 |
| 超過1000小于1600 | +1.6 0 |
| 超過1600小于2000 | +1.8 0 |
■支承型式
| 標記 | 名稱 | 標記 | 名稱 |
| SD | 基本型 | CA | 單耳環形 |
| LA | 橫向底腳型 | CB | 桿頭蓋銷型 |
| LB | 縱向底腳型 | TA | 桿頭蓋銷軸型 |
| FA | 桿側長方法蘭型 | TC | 中間銷軸型 |
| FB | 缸頭側長方法蘭型 |
